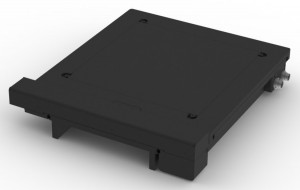

    Motorised Stage SCAN 200 × 200

    Marzhauser_Scanning_Stage_Scan_200x200
    Overview
    Motorized microscope stages, which Märzhäuser provides are characterized by their high accuracy and extreme smooth movement. This is due mainly to high-precision cross roller bearings, closest tolerances in manufacturing as well as a special long-term lubrication system.

    Product Features:
    – flat, ergonomic design with rounded corners
    – L-shaped support stages optional available


    Specifications

    Travel range max. 200 × 200 mm
    Travel speed max. 120 mm/s (with 2 mm ball screw pitch), max. 240 mm/s (with 4 mm ball screw pitch)
    Repeatability < 1 µm (bidirectional) Accuracy ±3 μm1
    Resolution 0.01 µm (smallest step size)
    Orthogonality < 10 arcsec Motor type 2-phase stepper motor
    Limit switches continuously adjustable light barriers
    Material / surface aluminium / anodic coating, black lacquered
    Weight approx. 8.9 kg
