Overview

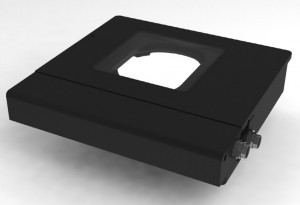

Motorized microscope stages, which Märzhäuser provides are characterized by their high accuracy and extreme smooth movement. This is due mainly to high-precision cross roller bearings, closest tolerances in manufacturing as well as a special long-term lubrication system.

Product Features:
– flat, ergonomic design with rounded corners
– plain surface for easy cleaning
– exchangeable stage inserts for different kinds of applications
– continuously adjustable optical light barriers for individual travel range limitation
– integrated electronic stage identification device ETS for automatic identification of the scanning stage and parametrization of the controller

Specifications

Travel range max. 75 × 50 mm
Travel speed max. 25 mm/s (with 1 mm ball screw pitch), max. 50 mm/s (with 2 mm ball screw pitch)
Repeatability < 1 µm Accuracy ±3 μm
Resolution 0.01 µm (smallest step size)
Orthogonality < 5 arcsec Motor type 2-phase stepper motor
Limit switches light barriers
Stage opening 116 × 116 mm
Material / surface aluminium / anodic coating, black lacquered
Weight approx. 2.6 kg
